Miniature, low power thermal imaging core for OEM applications

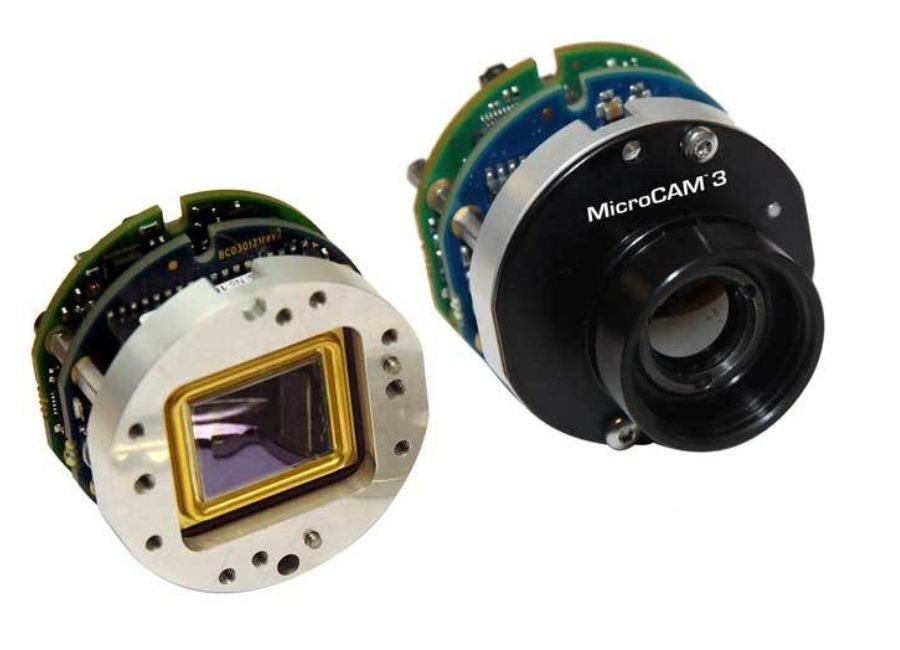

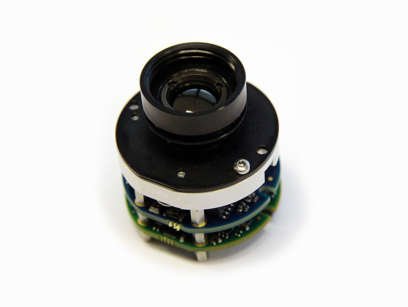

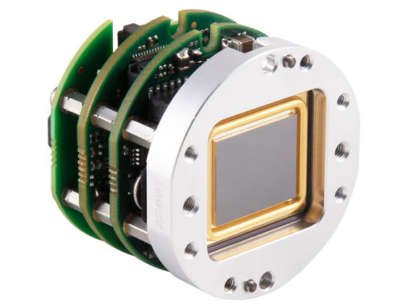

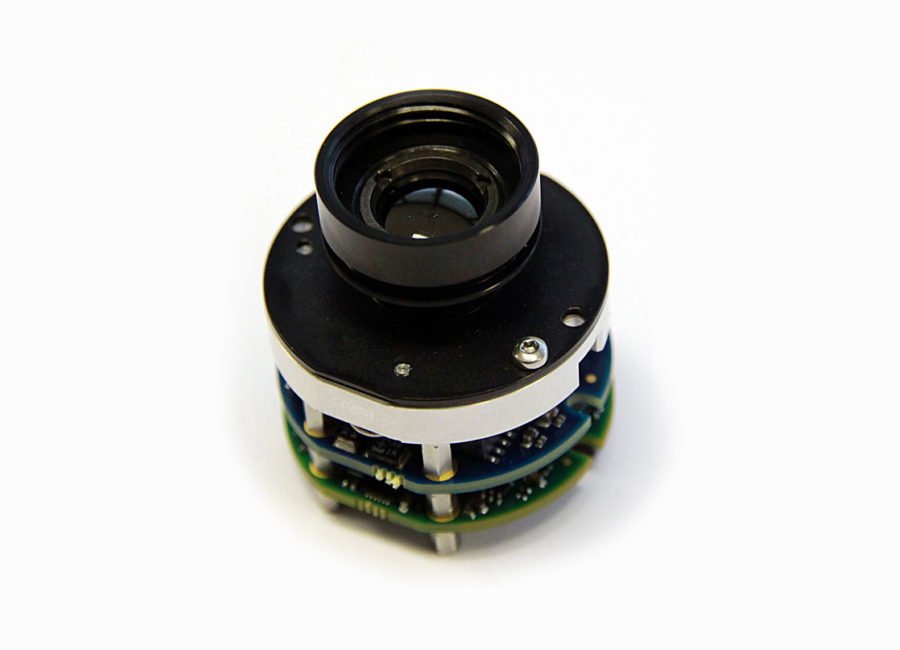

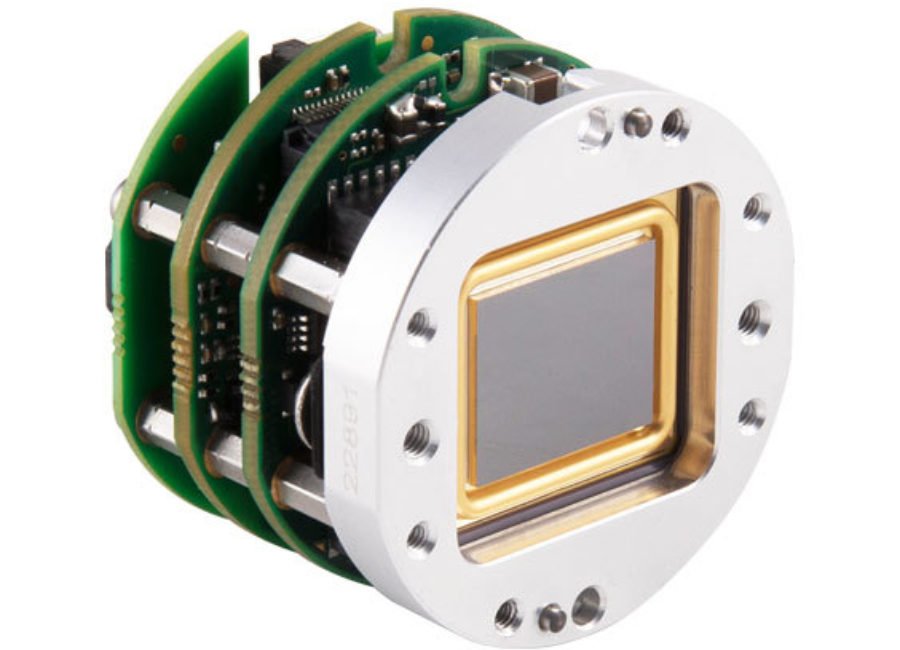

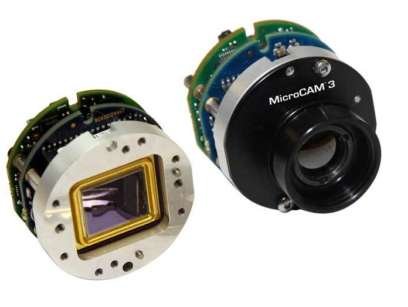

MicroCAM 3 is a state of the art miniature, low power thermal imaging core for cost-effective OEM applications. Shuttered and shutterless XTi options are available with a range of different detectors and performances.
Low latency, industry-leading low-power consumption and excellent high shock resistance ensure smooth operation under the harshest of mission conditions.
MicroCAM 3 is the first choice for integrators and developers.
XTi SHUTTERLESS TECHNOLOGY
MicroCAM 3 thermal imaging core features Thermoteknix patented shutterless XTi Technology® so viewing is never interrupted.
EXCEPTIONAL LOW LATENCY
Low latency is vital for direct viewing applications such as head mounted vision aids. Any significant latency causes nausea and is a danger when navigating in theatre.
FLEXIBLE OPTIONS
MicroCAM 3 is available in 640×480 17µ resolution with wide range of lens options and customisation. Thermoteknix is unique in working closely with OEM’s to share our expertise to add features and customise our products.
640 x 480 resolution
XTi Shutterless Technology
| Specification | |
|---|---|
| Detector | 640 x 480 17µm LWIR, Amorphous Silicon |
| Operation | Uncooled (TEC-less) |
| Spectral response | LW Broadband, ≤8µm LW broadband, ≤8µm to ≥14 µmto ≥14 µm |
| Sensitivity | (f/1.0 no lens), <50mK or <40mK (optional) |
| Power consumption | <0.55W / <0.75W |
| Outputs | Analog/Digital |
| Zoom | x2, x4 incremental/smooth |
| Operating temperature | -40°C to +70°C |
| Size | 36.0Ø x 24.5mm, (1.427 Ø x 0.96 inch) |
| Weight | 32g |
