Bi-ocular Thermal Imager with Daylight Camera and Laser Range Finder (LRF) for Day or Night Use
Bi-ocular multi-function thermal imager with daylight camera and Laser Range Finder (LRF).

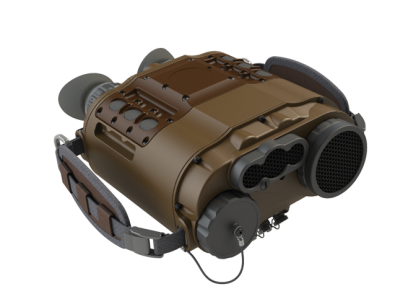

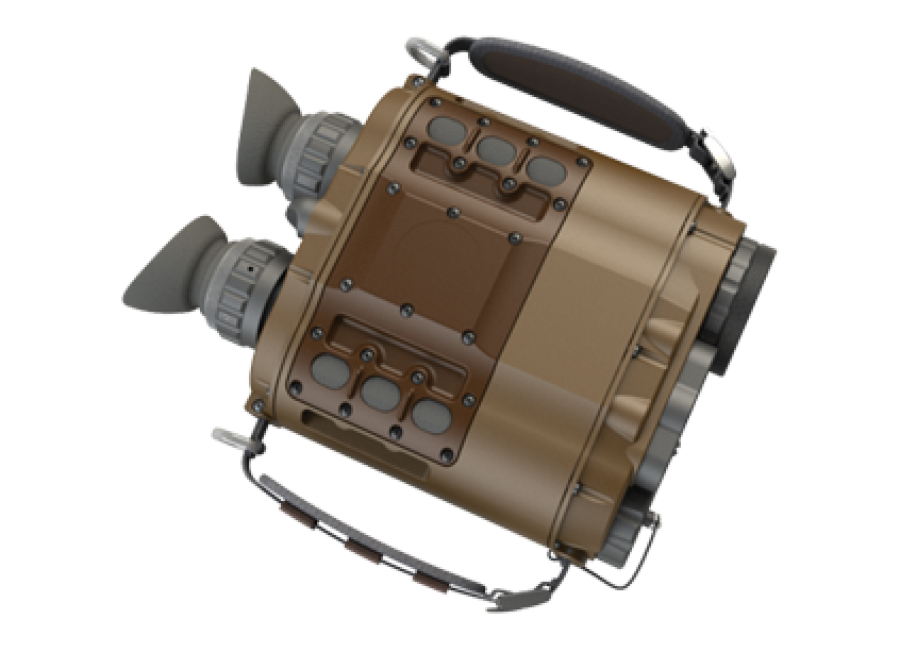

TiCAM 1200C is a versatile security, surveillance and observation sensor for day and night use. The device is based on a Thermoteknix high resolution uncooled thermal imaging core along with a visible daylight CCD channel. It features a Laser Range Finder (LRF), Digital Magnetic Compass (DMC) and real-time in-camera digital recording, providing accurate location and co-ordinates.
Lightweight and compact, TiCAM 1200C is suitable for forward observation units, infantry, border security, police, special units and search and rescue. Dual OLED displays ensure maximum comfort for long-term surveillance.
TiCAM 1200C operates from internal AA batteries or external power. It can be connected to various information/command systems for real-time data exchange. Compatible with Thermoteknix ConnectIR Android application or Thermoteknix ConnectIR-TAK plugin for use with ATAK-MIL or ATAK-CIV.
INTUITIVE USER INTERFACE
The TiCAM 1200C has a novel and unique interface that is intuitive, and is easy to learn and operate its full functionality in the field.
POWERFUL MULTI-SENSOR CAPABILITY
TiCAM 1200C is based on a Thermoteknix 640 x 480 12μm uncooled microbolometer uncooled thermal imager and daylight CCD electo-optical bore sighted channel for true 24-hour operation.
ATAK-MIL AND/OR ATAK-CIV COMPATIBLE

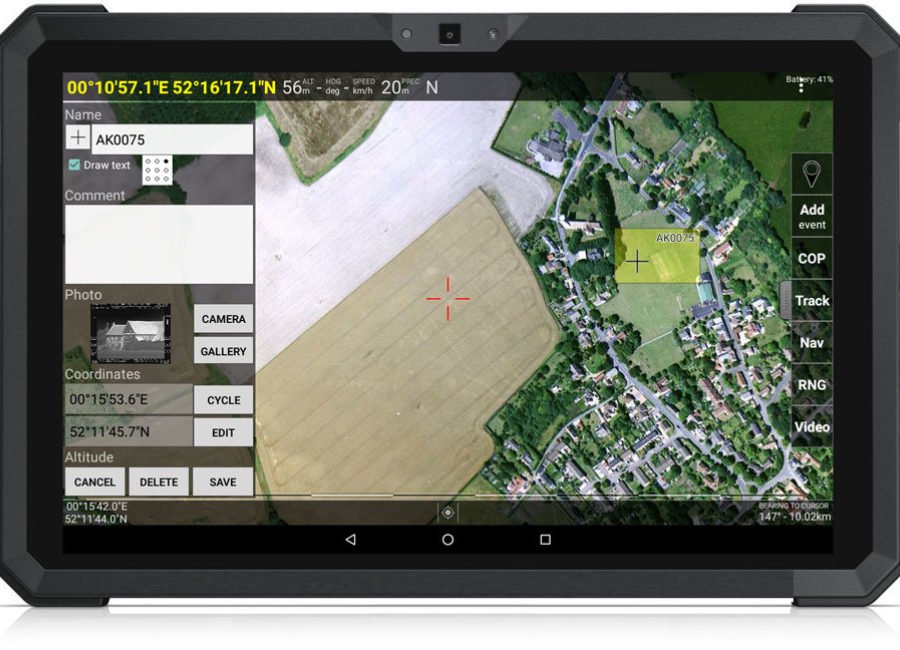

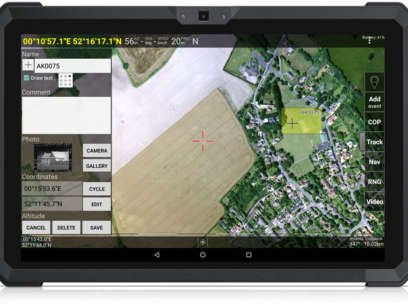

Compatible with Thermoteknix ConnectIR Android application or Thermoteknix ConnectIR-TAK plugin for use with ATAK-MIL or ATAK-CIV for real-time data exchange.
640 x 480 resolution
AA Battery Powered
Digital Magnetic Compass
Laser Range Finder
Non-ITAR
| Specification | |
|---|---|
| Thermal resolution | 640 x 480 12μm uncooled microbolometer |
| Daylight CCD Channel | Electronic Visual Colour Camera - 1.3M pixels, Horizontal Field of View - 5.6° |
| Target detection | 2945m |
| Operating time | >8 hours |
| Dimensions (L x D x W) | 200mm (L) x 165mm (W) x 90mm (H) |
| Laser Pointer | 850nm (IR) - Class 1 |
| Laser Range Finder (LRF) | Eyesafe 1,550nm |
| Weight | <1.7kg (including batteries) |
| Environmental | MIL-STD-810G and MIL-STD-461 |
